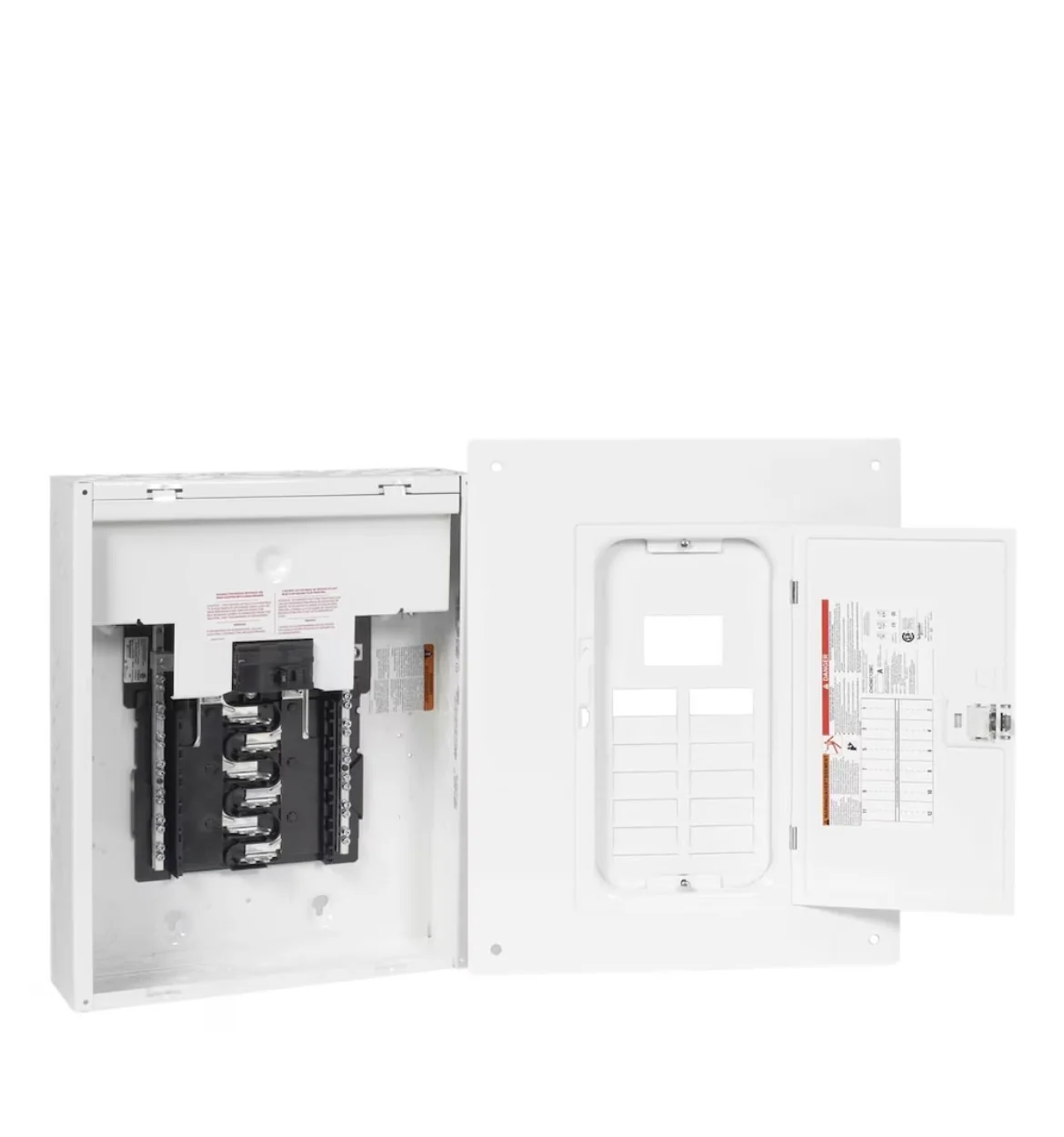

Schneider Electric Homeline 100 Amp Main Breaker Load center 12 Spaces 24 Circuits Maximum Convertible to Main Lug (new)

Homeline load centers offer features HOM breakers, ground fault circuit breakers and arc fault interrupters. CHOM Load Centers enable the use of a full complement of accessories. Systems are single phase and are rated for indoor use or are rain proof. CHOM load centers are designed for residential and industrial use to protect electrical systems, equipment and people. This CHOM Load Center has a plug on neutral main circuit breaker that is rated at 100 A single phase. This CHOM load center provides a 22 kA breaking capacity. This system provides 12 spaces in a NEMA 1 enclosure. J.T

• The electrical connections are lugs.
• A grounding bar is included but not installed.
• The box lugs will accept a wire range of 6 AWG to 2/0 AWG copper or aluminum wire.
• This load center has a height of 17.92 inches, a width of 14.25 inches and depth of 3.75 inches.
• The combination flush surface cover is painted white.
• CSA certified.
